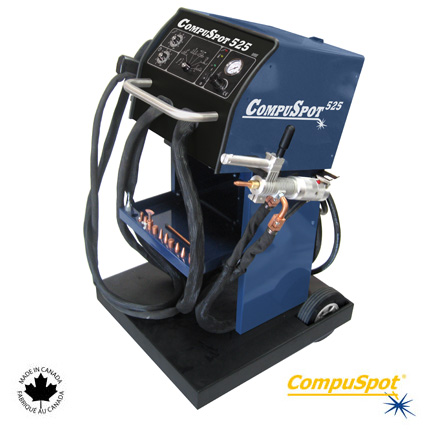

Multi-Function Compression Spot Welder



Designed to reduce panel drilling MIG weld plugging, and grinding to a minimum.

Factory spot welds can be replicated on thin panels as well as structural metal up to 3mm thick (0.12").

Available with C or G clamp.

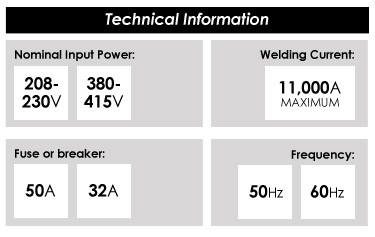

Maximum welding current of 11,000 amps delivers superior performance on today's sheet metals including galvanized and high-tensile steel. A variety of accessory electrode arms for the versatile pneumatic clamps can reach up to 90% of the automobiles body.

Easily interchangable electrodes provide single side spot welding for places without access to both sides of the panel. A full complement of dent pulling accessories and heat shrinking accessories is included.

Permanently attached air cooled welding cables provide maximum flexibility and increases shop productivity.

Boom swivel arm optional.

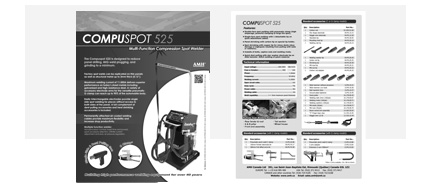

Download this document to get more information

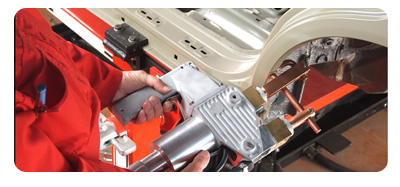

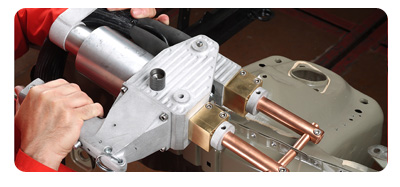

Multiple spot welding positions
Rear fender & Roof, A & B Pillar, Front End Assembly, Tail Section and Wheel House

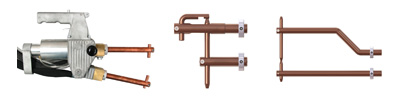

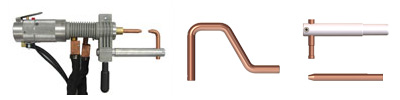

Standard Accessories (with C clamp model only)   Standard Accessories (with G clamp model only)
Pneumatic C Clamp (13.PS.10.96)   Pneumatic G Clamp (13.PS.10.86)
160mm Fender electrodes set (04.PS.70.17)   155mm 1/2 Offset arm (04.PS.34.12)
380mm Full offset arms set (04.PS.70.38)   Copper straight electrode (04.PS.38.14)
    Fender electrode (04.PS.38.13)

Standard Accessories (with C or G clamp model)
Carbon rod
(02.205.01.60)
Fan shape electrode
(04.PS.15.15)
Wiggle wire tip
(04.PS.15.30)
Standard electrode
(04.PS.20.05)


Moulding rivet electrode
(04.PS.20.10)
Welding nail electrode
(04.PS.20.15)
Welding washer electrode
(04.PS.20.20)
Gutter rail electrode
(04.PS.20.25)

Shrinking electrode
(04.PS.20.30)
M6 Stud electrode
(04.PS.20.31)
M6 Nut electrode
(04.PS.20.32)
Carbone rod adapter
(04.PS.20.33)

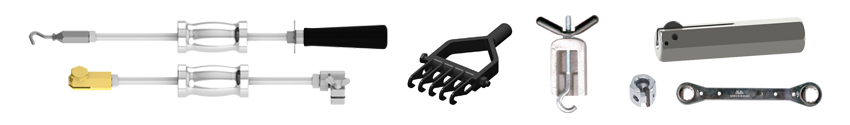

Other Accessories
Slide hammer without accessory
(13.PS.10.21)
Slide hammer c/w hook
(13.PS.10.26)
Nail mandrel
(13.PS.10.27)
5" Finger bear claw
(13.155.10.45)
Tip sharpener
(04.PS.20.94)
Rachet key for tip sharpener
(08.176.00.30)
M6 nuts
(16.178.00.79)
Ground plate tightener
(13.PS.10.45)
Wiggle wire 1/2lbs
(13.155.10.78)
M6 studs 30pcs
(16.178.00.77)
Welding nails 2mm 100pcs
(16.178.00.67)
Welding rivets 100pcs
(16.178.00.71)
Welding washers 100pcs
(16.178.00.72)
