Two-Way Expander with Gripper Clamp

AMH's fully automatic and remote foot controlled Blue Boy Pipe Bender Model 133MSA is a Two-Way Expander with Gripper Clamp for maximum versatility.

Designed to provide swaging and hydra-sizing in a single unit. The rugged Blue Boy steel frame and finest quality hydraulics and electronics provide years of trouble free service.

Automatic control is recessed, uses 24-volt system for more safety.

3"-inch bending capability.

Depth of bend plate allows precise control of bend angle.

Motor available in single or three phase.

Synchronized back gates need less maintenance, make more uniform bends.

Back gate cylinder is bottom-mounted to eliminate interference with tubing.

Download this document to get more information
Autres informations:

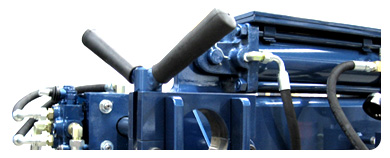

The unique gripper clamp features two-pieces collars with double-tapered walls to eliminate pipe slippage during expansion and reduction operations. The greater the force exerted on the tube the tighter the grip is. This unit is designed for use with solid dies to perform many different forming operations, slip fits, domes, flares, ball joints, flanges and reductions.
A double-action ram expander for increased production capacity. Double action allows use as both a Gripper Clamp and Hydra-Sizing Expander.
